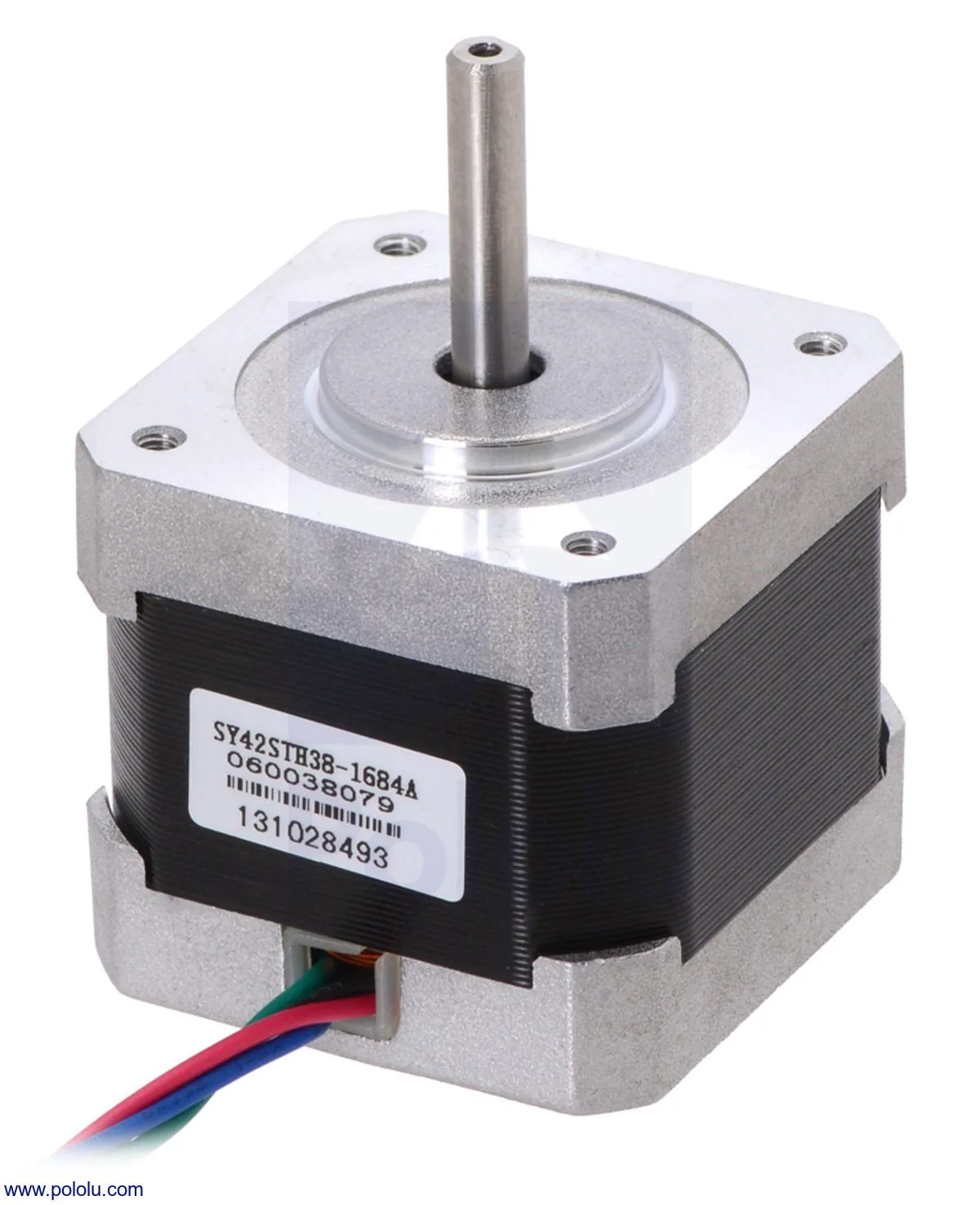

This hybrid Stepper Motor Nema 17 Bipolar, 1.7A, has a 1.8° step angle (200 steps per revolution). Each phase draws 1.7 A at 2.8 V, allowing for a holding torque of 3.7 kg/cm (51 oz/in).

The motor has four color-coded wires terminated with bare leads: black and green connect to one coil, and red and blue connect to the other. Size: 42.3 mm square  38 mm, not including the shaft (NEMA 17).

• Weight: 285 g (10 oz)
• Shaft diameter: 5 mm “D”
• Steps per revolution: 200
• Current rating: 1.68 A per coil
• Voltage rating: 2.8 V
• Resistance: 1.65  per coil
• Holding torque: 3.7 kg-cm (51 oz-in)
• Inductance: 3.2 mH per coil
• Lead length: 30 cm (12′′)
• Output shaft supported by two ball bearings

More specifications are available in the datasheet (39K pdf).

The following diagram shows the stepper motor dimensions in mm. The dimension labeled “length” is 38 mm. The output D-shaft has a 5 mm diameter with a section that is flattened by 0.5 mm. This shaft works with our 5 mm universal mounting hub.
